Multi functions
Function 1. Vacuum-seal
Function 2. Vacuum-gas flush-seal
may co khi external vacuum packing machine vertical big bag outside type vacuum packaging machine price nuts Advantage

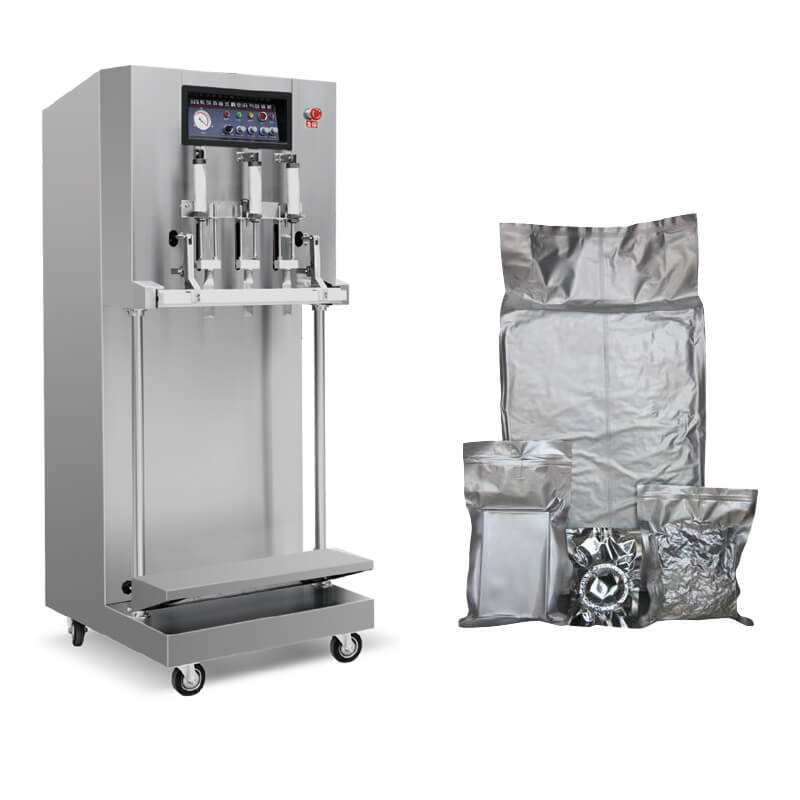

--- Support big bag and wide range of bags material also thickness.
--- Only cost 15s-20s per cycle.
--- Low gas consumption, and it can fill sufficient gas into bag.
--- Easy to operate and maintain.
--- Equipped with oil/water seperator and dust filter.
--- Height of work table is adjustable.
--- Flow of gas flush can be adjusted.
--- Low noise.
| Model |
DZ-600F |
DZ-700F |
DZ-800F |
DZ-900F |
DZ-1000F |
DZ-1200F |
| Seal size |
600*8mm |
700*8mm |
800*8mm |
900*8mm |
1000*8mm |
1200*8mm |
| Maxi bag size |
580*900mm |
680*900mm |
780*900mm |
880*900mm |
980*900mm |
1180*900mm |
| Nozzle number |
Stand machine is 2 nozzles. 3 or 4 nozzles is optional |
| Material |
304 grade stainless steel |
| Voltage & power |
110V/220V/240V/380V 50HZ/60HZ 1 or 3 phase 0.75-1.2KW |
| Heat system |
Single heat system |
| Controller |
Waterproof PCB controller, language in English |
| Function |
Vacuum, gas flush, seal. Gas flush function can be closed if need |
| Spare parts |
1 set wre nch, allen key, teflon cloth, heat strip, English manual |

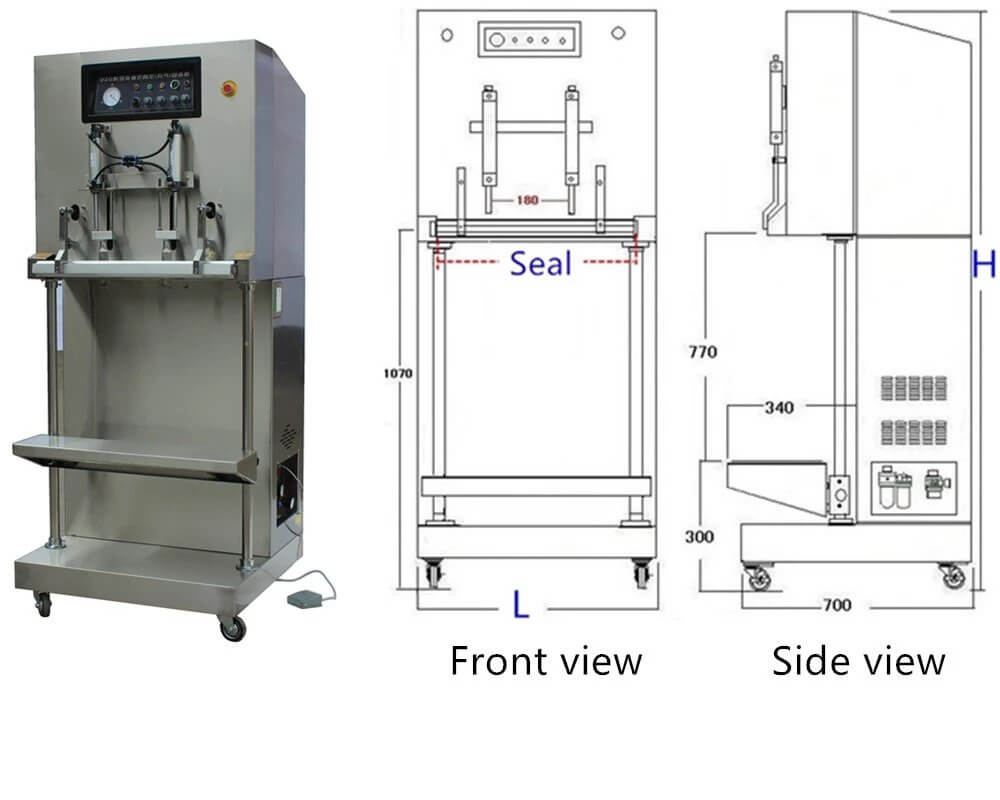

| Overall size(L*W*H) |
700*700*1800mm |
800*700*1800mm |
900*700*1800mm |
1000*700*1800mm |
1100*700*1800mm |
1300*700*1800mm |
| Net weight |
150KG |
160KG |
180KG |
200KG |
220KG |
240KG |
| Air compressor |
Air compressor is required for this machine, buyer shall prepare it himself. |
If bag thicker than 0.2mm, we suggest double heat system, with extra cost.
Max 4 nozzles can be equiped for customized machine, with extra cost.
